Single-Select or Multi-Select Pill Tabs Group

Use this to add single-select or multi-select pills above any repeating group.

Overview

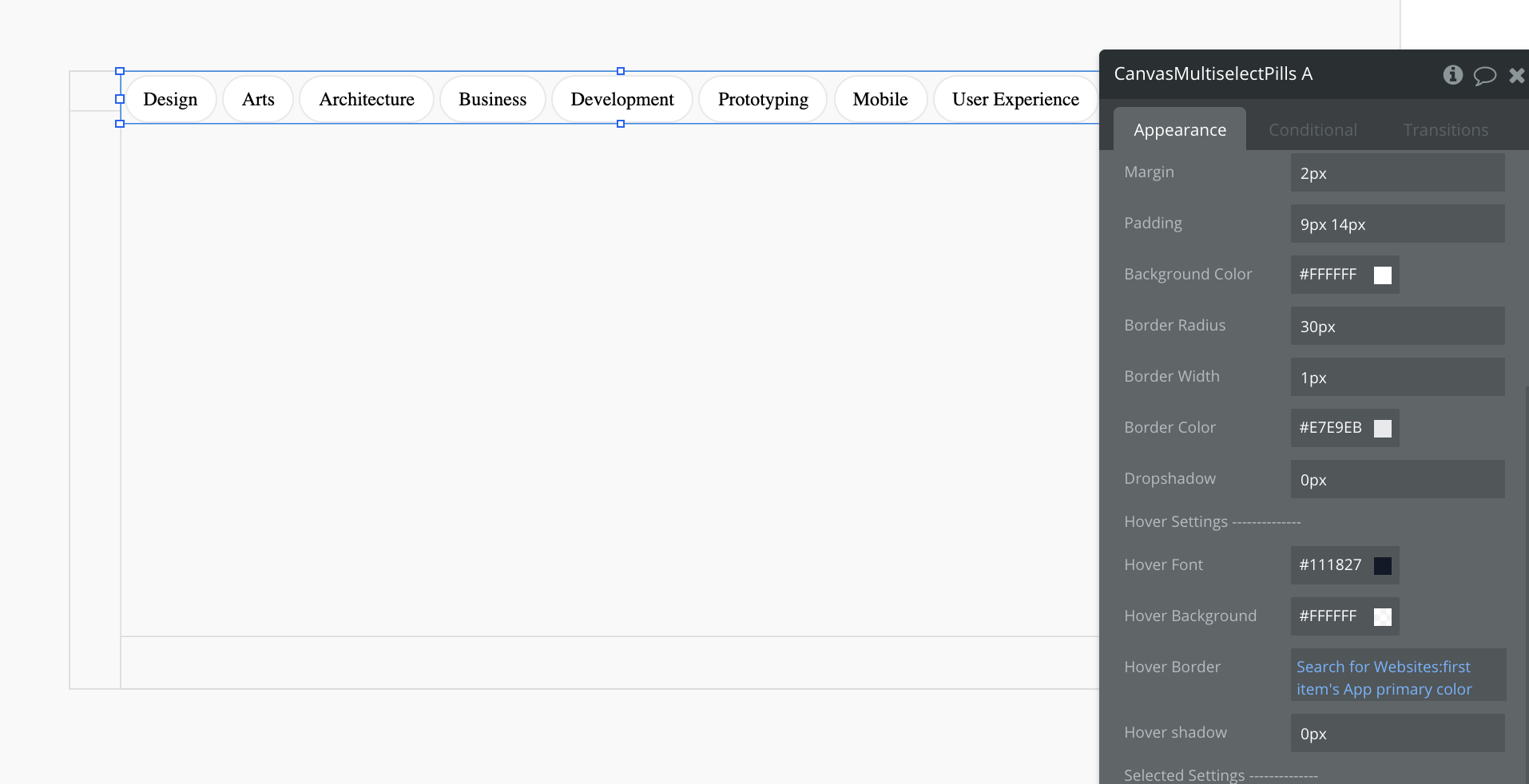

Multi-select preview

Single-select preview

Editor view

This block includes the Multiselect Pills visual element from the Canvas UI elements plugin.

Structure

• The CanvasMultiselectPills plugin element can display any list of Things in pill-shaped tabs. The pills are responsive in width and will adjust based on the display text of each pill.

• By default, the pill style will utilize your app's primary colors. You can adjust the styling within the property editor of the visual element.

How to set up multi-select tabs

• In the CanvasMultiselectPills plugin element's property editor, update the type of content and data source of the plugin element.

• If you are using this element to filter a repeating group, add a constraint to your repeating group, which utilizes the "Current selected" state of the plugin:

You do not need to add any workflows for the multi-select functionality. The plugin element has multi-select functionality built into it.

How to set up single-select tabs

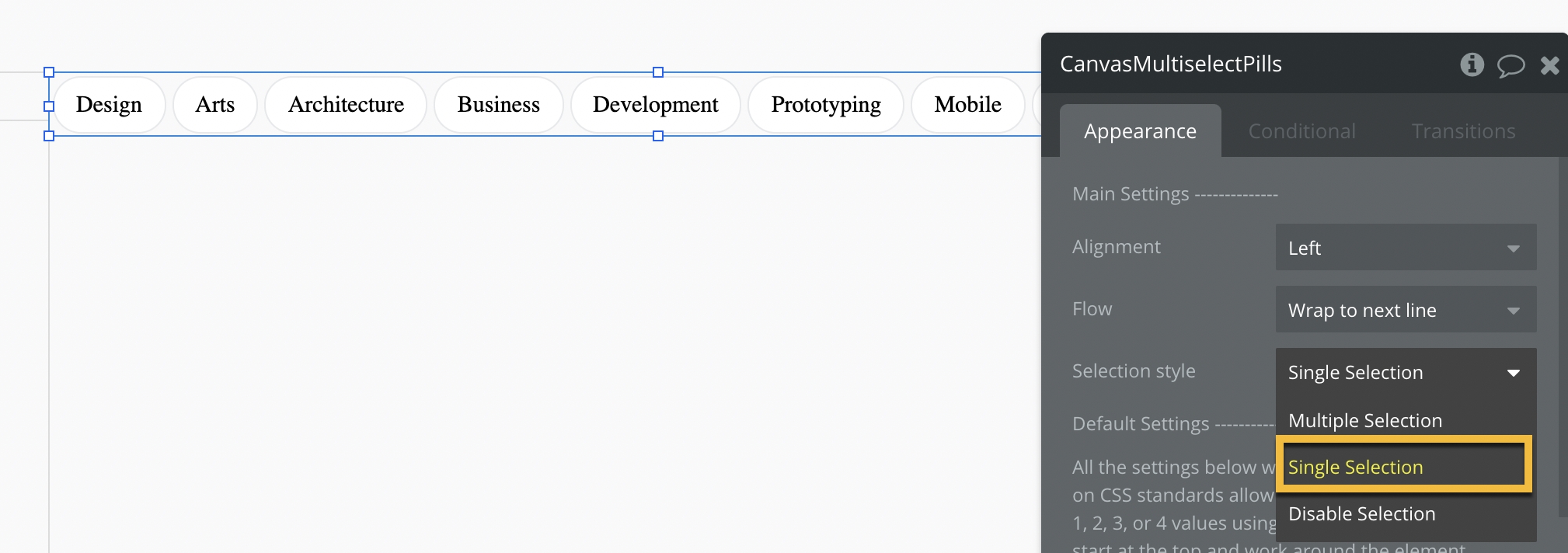

• In the CanvasMultiselectPills plugin element's property editor, change the selection style from "Multiple Selection" to "Single Selection".

• In the CanvasMultiselectPills plugin element's property editor, update the type of content and data source of the plugin element.

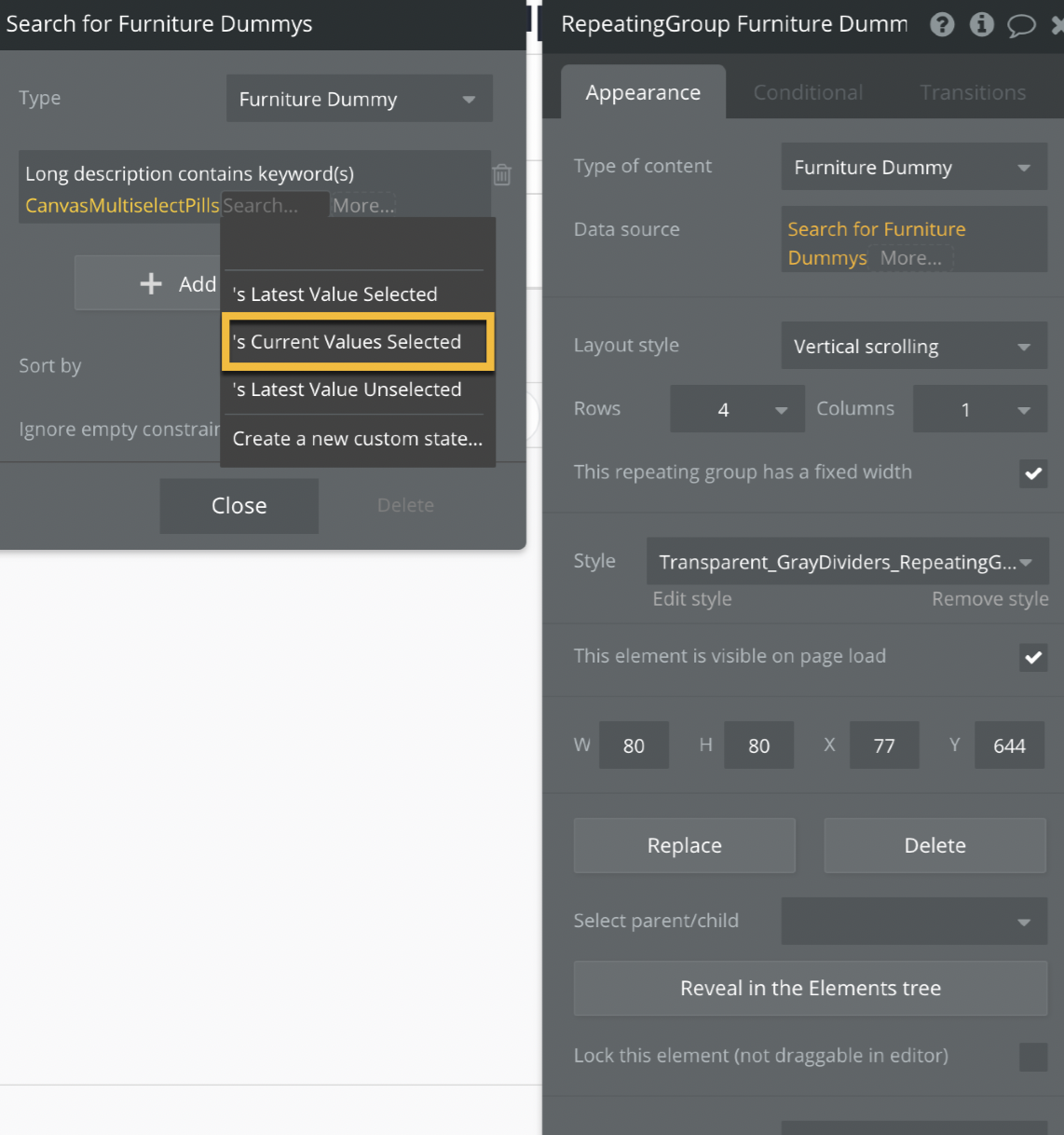

• If you are using this element to filter a repeating group, add a constraint to your repeating group, which utilizes the "Current selected" state of the plugin:

You do not need to add any workflows for the single-select functionality. The plugin element has single-select functionality built into it.

Other customization options

• Change the alignment of the tabs from "left-justified" to "centered" or "right-justified" through the property editor's alignment dropdown.

• Change the responsive behavior of the tabs from "wrap to the next line" to "scroll horizontally" or "scroll vertically" through the property editor's flow dropdown.
