# Standard Multi-Step Process Page

## Overview

![](https://content.gitbook.com/content/SSunCeiuKbDNt2RTgRa6/blobs/NJCjM1AMT3mvbKMw3XFg/53.gif)

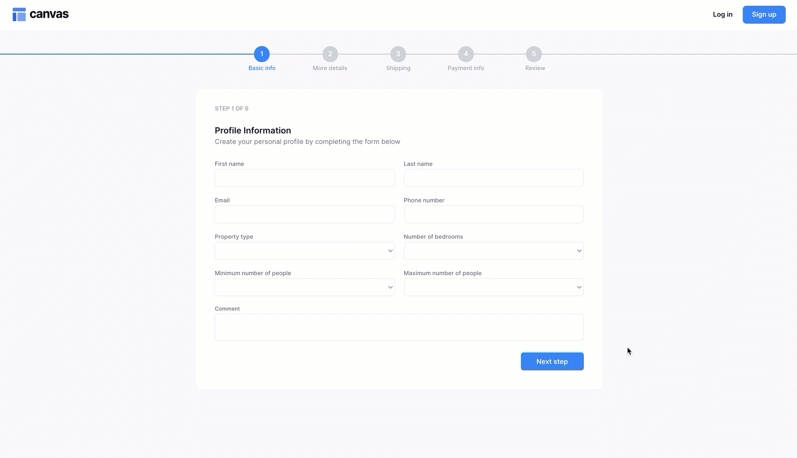

This page has a series of forms. Each form constitutes a "step" in the process. Users can go back and forth between steps and see what step they are on via a dynamic progress bar reusable element at the top of the page. This version is ideal for simple forms such as check out process and surveys.

## Structure

* When this page is added to your app, it will come with two main groups:
  * **Group Standard Forms**\
    This group contains blocks that are connected to workflows. Each **Group Tab #** within this parent group will show or hide depending on which progress step the user is currently on.
  * **Blocks container 860 (do not rename)**\
    This group contains the responsive settings for all blocks on the page. Any new blocks should be added to this group.
* This page comes with one popup:
  * **Popup Hidden Variables** contains two groups:
    * **var - Website object**\
      This group stores the website object (e.g., app name, primary color, and etc.)
    * **var - dummy data**\
      A placeholder group in case you want to use any hidden variable groups later.
    * **var - tab url parameter**\
      This group stores the progress step (of type `text`) that the user is currently on.
    * **var - current step**\
      This group stores the current step (of type `number`) that the user is currently on.
    * **var - total steps**\
      This group stores total number of steps (of type `number`).
* This page will come with two reusable elements:
  * [**header**](https://docs.airdev.co/canvas/canvas-functionality/reference/reusable-elements/header)

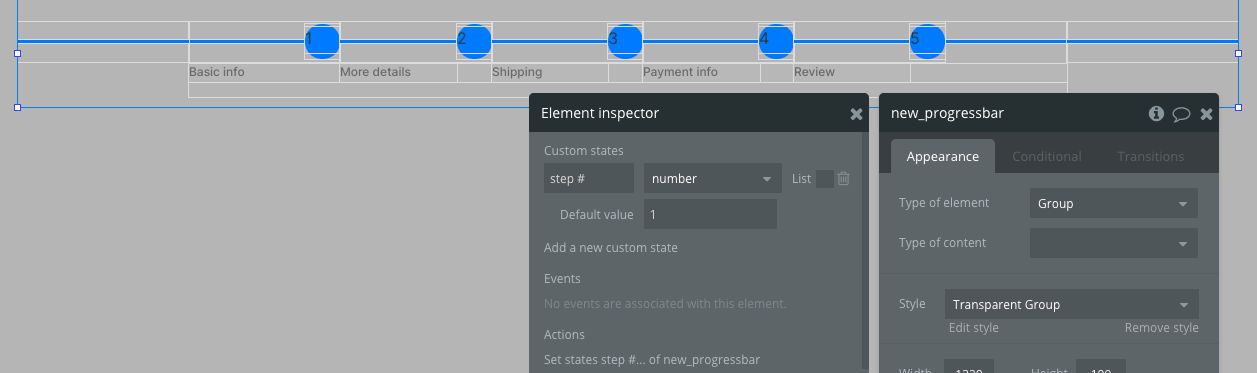

  * **multistep\_progressbar**\
    This reusable element contains the UI for the progress bar. It has a custom state called **step #** of type `number` which stores the current step # that the user is on.

![](https://content.gitbook.com/content/SSunCeiuKbDNt2RTgRa6/blobs/9Xq5cquQmt0bU11eNdZC/54.png)

* Clicking on **Button Back** goes to a previous progress step
* Clicking on **Button Next** goes to the next progress step
* The page also comes with a **tab url parameter**. Users can load the page to show a specific step and its corresponding block by adding a url parameter (e.g, ?tab=3 or \&tab=3 if there are multiple parameters).

## How to set up

* Update the number of total steps in **var - total steps.**

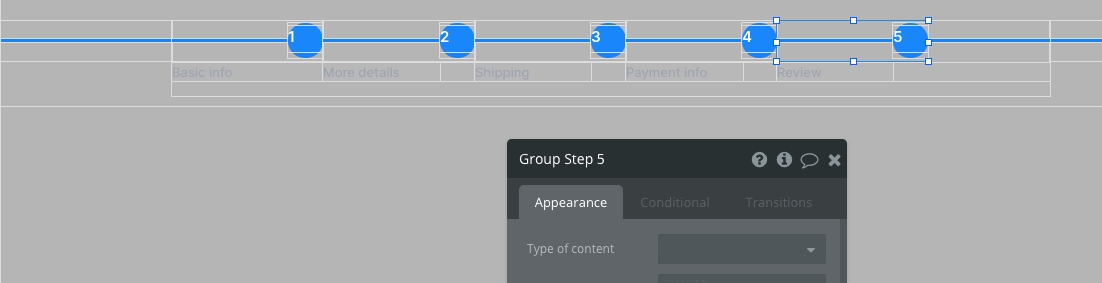

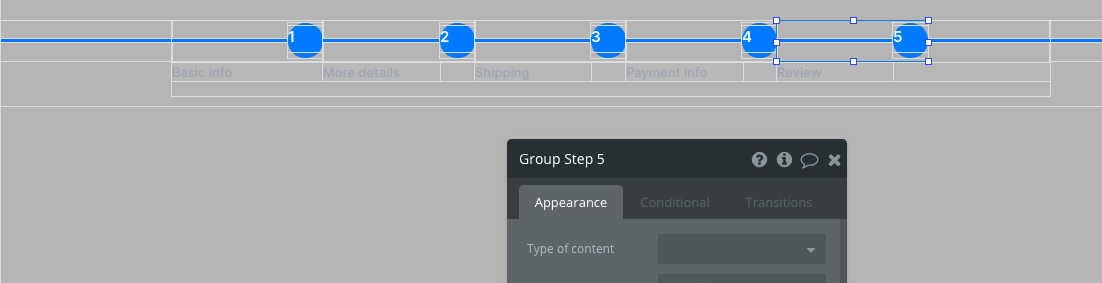

* Modify or update the progress bar steps within the **multistep\_progressbar** reusable element to fit your needs.

![](https://content.gitbook.com/content/SSunCeiuKbDNt2RTgRa6/blobs/L68H4bmBeZ8m4YVEPqxk/55.png)

* \[Optional] Remove **Group Tab 1**, **Group Tab 2**, **Group Tab 3**, **Group Tab 4**, **Group Tab 5**, or **Group Tab 6.**
* \[Optional] Resize **Blocks container 860 (do not rename)** and add other blocks inside of it

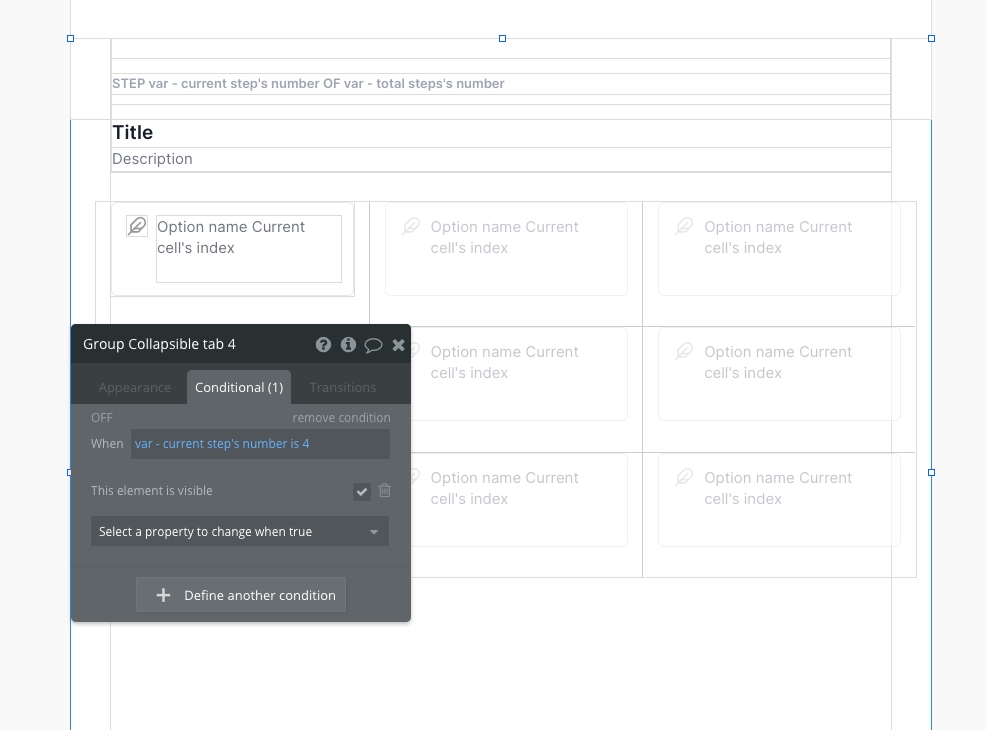

  * Make sure you update the conditional statements on those blocks. Use existing Group tabs as a reference and add a similar conditional statement:\
    \&#xNAN;*If var - current's number is {#}, then the group is visible*

![](https://content.gitbook.com/content/SSunCeiuKbDNt2RTgRa6/blobs/WPs5eiCWoafX79BxAvaC/56.png)

* Add workflows to **Button Back** and **Button Next**
