# Multi-Step Page With Progress Bar

## Overview

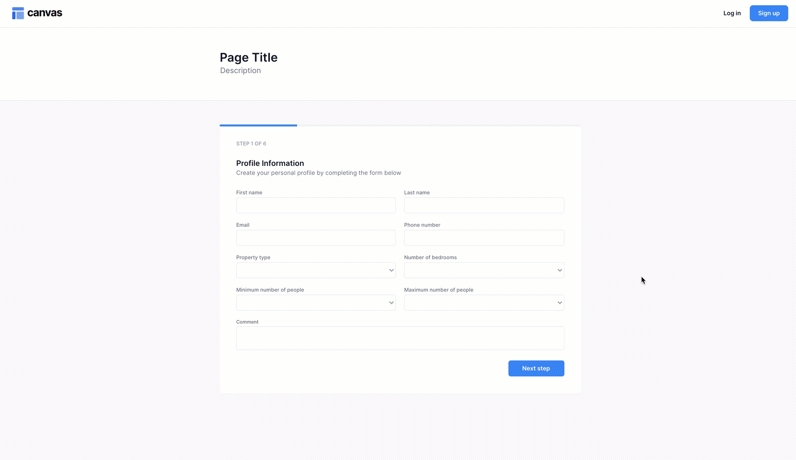

![](https://content.gitbook.com/content/Bhlvy44frcfaqAPdOVlG/blobs/L7JvhJ9Dsx6fYy2WuMxa/49.gif)

This page includes a series of groups and a progress bar. Users can go back and forth between steps and see which step they are on via a dynamic progress bar. This page should be used for surveys or on-boarding walkthroughs.

## Structure

* When this page is added to your app, it will come with two main groups:
  * **Group Multistep Forms** contains the following:
    * **multistep\_progressbar** stores the user's current progress
      * It references data from **var - current step** and **var - total steps**. You can modify the data source in the **hidden variables popup**
    * **Group Collapsible tab 1** includes a form with various inputs
    * **Group Collapsible tab 2** includes a one-column form
    * **Group Collapsible tab 3** includes an image, title text, and description text (ideal format for on-boarding screens)
      * You should upload an SVG image
    * **Group Collapsible tab 4** includes a multi-select repeating group
      * **RepeatingGroup Dummy** holds the data for the multi-select options (type Dummy). It also has a custom state on it for the user's list of selected options.
      * Clicking on **Group Main select option** will add the Repeating Group's current option to the custom state list of `selected options`.
    * **Group Collapsible tab 5** includes a loading screen
    * **Group Collapsible tab 5** includes a confirmation screen with an icon, title text, and description text, and button

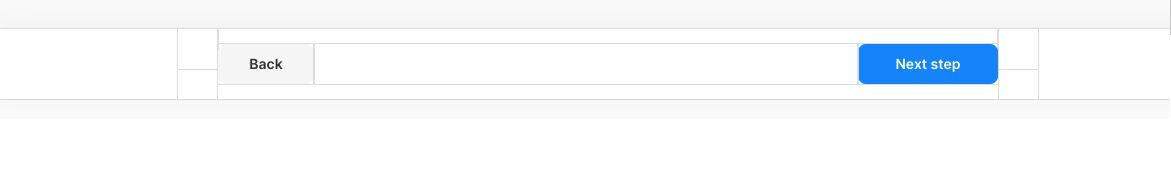

    * **Group Main buttons** includes **Button Back** and **Button Next**
  * **Blocks container 860 (do not rename)**

    This group contains the responsive settings for all blocks on the page. Any new blocks should be added to this group.

![](https://content.gitbook.com/content/Bhlvy44frcfaqAPdOVlG/blobs/7oDVZ9IHhVewrno8qWYv/50.png)

* **FloatingGroup Bottom menu** contains **Button Back mobile** and **Button Next mobile**
  * The group is only visible when the current page width is less than or equal to 500
* This page comes with one popup:
  * **Popup Hidden Variables** contains two groups:
    * **var - Website object**\
      This group stores the website object (e.g., app name, primary color, and etc.)
    * **var - dummy data**\
      A placeholder group in case you want to use any hidden variable groups later.
    * **var - current step**\
      This group stores the current step number (step the user is currently on)
    * **var - total steps**\
      This group stores the number of total steps in the process
* Clicking on **Button Back** and **Button Back mobile** will move the user to the previous step
* Clicking on **Button Next** and **Button Next mobile** will move the user to the next step
* This page will come with one reusable element:
  * [**header**](https://docs.airdev.co/canvas/canvas-functionality/reference/reusable-elements/header)

## How to set up

* Modify the data source of **var - total steps**
* \[Optional] Remove **Group Collapsible tab 1**, **Group Collapsible tab 2**, **Group Collapsible tab 3**, **Group Collapsible tab 4**, **Group Collapsible tab 5**, or **Group Collapsible tab 6.**
* \[Optional] Resize **Blocks container 860 (do not rename)** and add other blocks inside of it
  * Make sure you update the condition statements on those blocks.

![](https://content.gitbook.com/content/Bhlvy44frcfaqAPdOVlG/blobs/SuEMEoNyUjxxxi7adNt3/51.png)

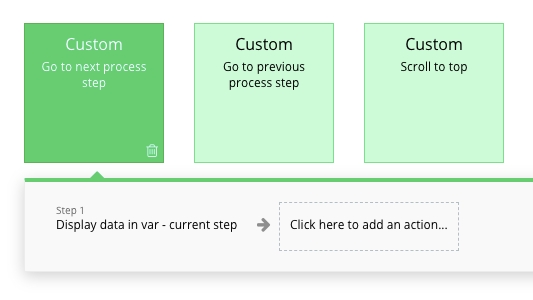

* Add workflow steps to *Go to next process step* and *Go to previous process step* custom workflows
* Add workflow to **Button Go to portal**

![](https://content.gitbook.com/content/Bhlvy44frcfaqAPdOVlG/blobs/Dtc1bSYxe0wGGIM7nFC1/52.png)

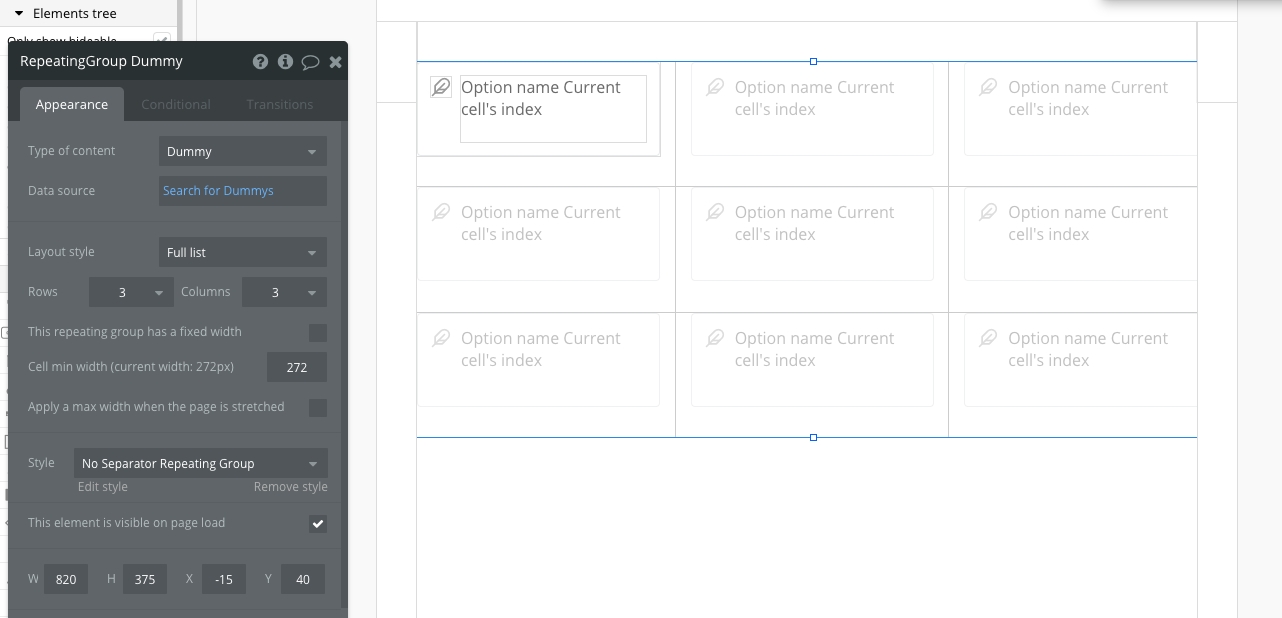

* Update the data source of **RepeatingGroup Dummy** in **Group Collapsible tab 4**
* Move **FloatingGroup Bottom menu** to the bottom of the page (make sure the bottom of the floating group is aligned with the bottom of the page).
