Bottom Input Chat Widget
Use this for all social chat messengers
This block allows a user to manage multiple conversation threads with different users. A user can click into one of the threads and send or view messages/attachments.
When this block is added to a page, it is placed within a group called Blocks container 860 (do not rename) on the page. This group contains the responsive settings for all blocks.
- bottominput_chat This reusable element contains all of the logic and UI for threads and messages. It contains three main groups:
- Group Main threads list_thread This group contains the list of threads that the current user is a part of. All of the threads are displayed in RepeatingGroup t-Thread. Clicking on Group Main select thread_thread will hide Group Main threads list_thread and show the messages for the selected thread.
- Group Main message_thread This group displays all messages between users in a thread (in RepeatingGroup t-Message). You have two versions of message formats to choose from:
Clicking on Group Inner Back to threads will navigate back to the list of threads. The user can enter a message in MultilineInput message and attach a file by clicking on the file clip icon. When an attachment is added, it will show underneath the message input. Clicking on it will open the attachment in a new tab for previewing. Clicking on Group Inner delete file will delete the attachment and allow you upload a new attachment.

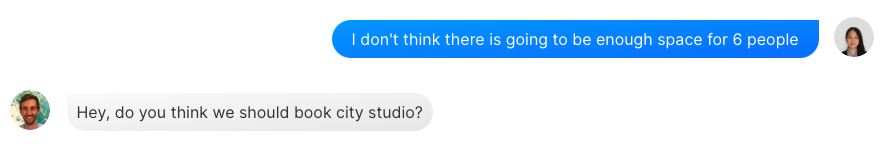

- iMessage format This is the default message format. To hide this style, select Group Collapsible iMsg_message and uncheck the box for This element is visible on page load.

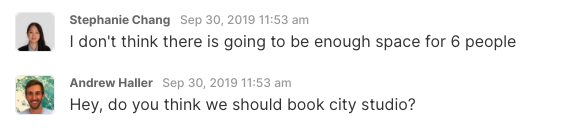

- Slack format To use this style, hide Group Collapsible iMsg_message and show Group Collapsible Slack_message by checking the box for This element is visible on page load.
- Popup Hidden Variables This popup includes various variables that are referenced in workflows or conditionals on the page.
For more information on how to use hidden variables, click here.
- var - Website object - This group stores the
website object(e.g., app name, primary color, and etc.)
- var - chat thread - This group stores the
threadthat the user is currently viewing.
- var - user viewing chat - This group stores the
userinformation (current user who is viewing the thread and messages).
- var - attached msg file - This group temporarily stores a
filethat the current user attaches to a message (this group will be reset when the message is sent).

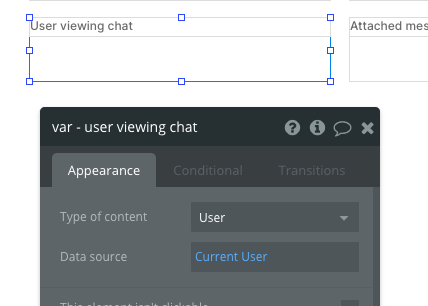

- In Popup Hidden Variables, update var - user viewing chat's data source to include any filters for the user who is viewing the chart
- You would want to keep the data source for this group here to

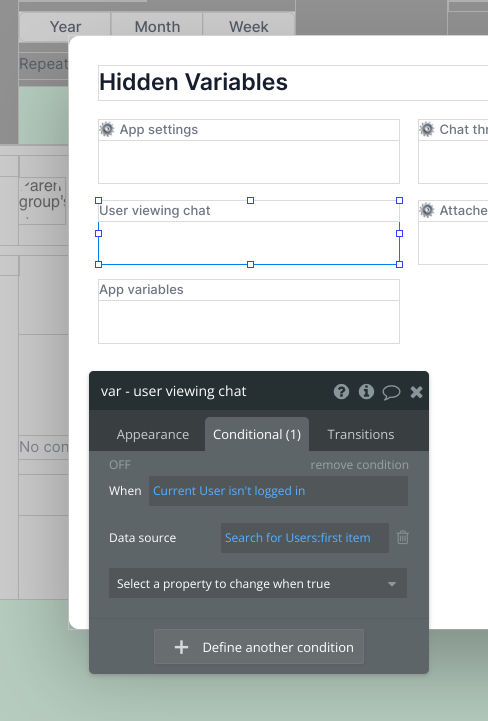

Current userand remove the conditional statement (Do a search for users:first item is a placeholder for demo purposes).
- Select a message format by showing Group Collapsible iMsg_message or Group Collapsible Slack_message. Hide the format that you are not using.
- [Optional] Change the iMessage format colors. You can do this by locating the HTML message styles in the reusable element and updating the hex color codes. From-me styles will apply to all messages sent by you (current user). From-them styles will apply to all messages sent by the other user(s).
Make sure you save the original code before you change the hex color codes in HTML message styles. Sometimes it takes a few page loads to see the html updates on the page. You can preview the updated html styles by doing a hard refresh in the chrome browser (Command + Shift+ R).
In Bubble, a reusable element is a way to build elements that you can replicate in more than one page without having to recreate them.
- On the page that you have your chat widget instance, set up a workflow to create a new thread and add the user(s) to the thread.
- For example, you might add a Message user button to the page and include the following workflows:

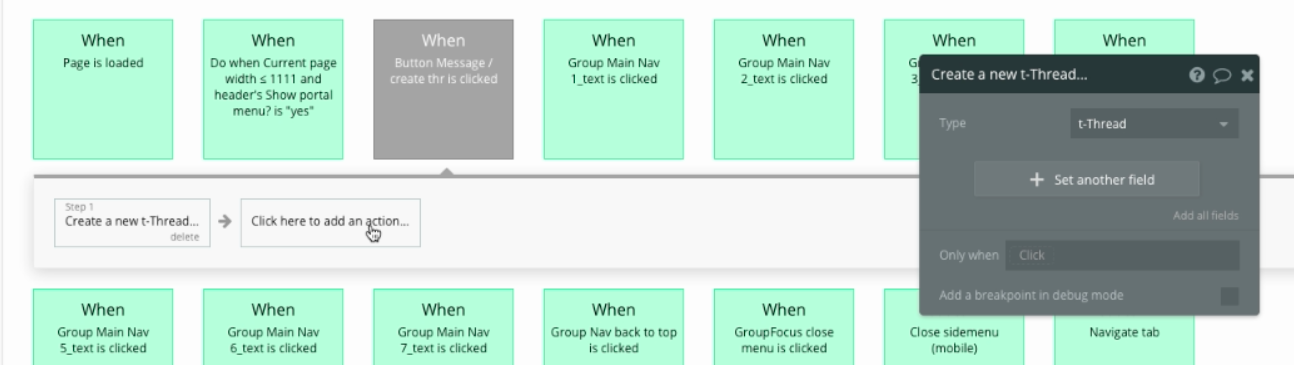

Create a new thread

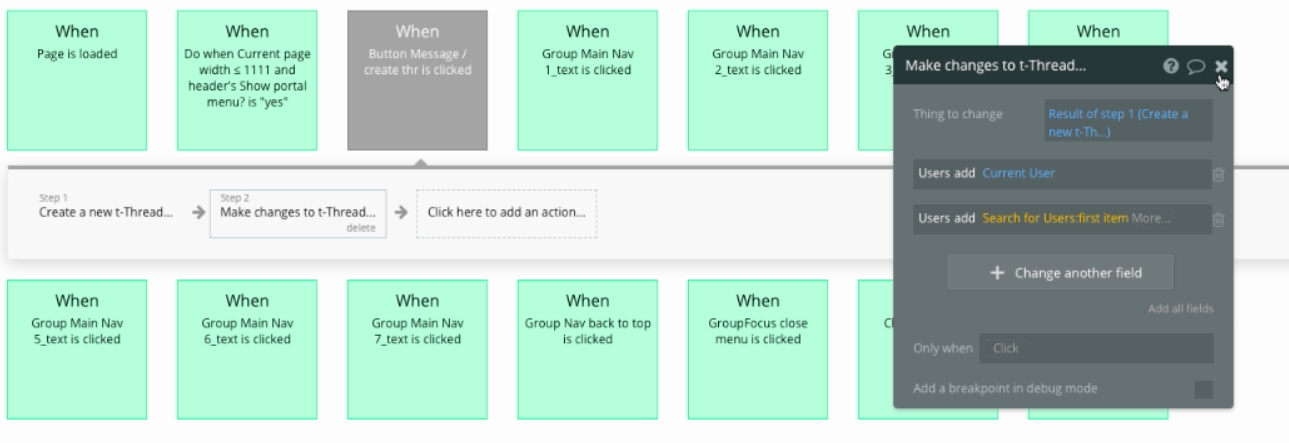

Add the users to the thread. The second user is for demo purposes and should be whoever the current user is messaging.
- The bottominput_chat instance has a data type of type
t-Thread. To display all of the current user's threads that he or she is a part of, do not set a thread data source. However, if you want to display only one thread for a user (i.e, hiding the threads list view and only showing the thread conversation view, then you should pass a thread to the reusable instance).
