Option Sets
A few option sets come included with the Canvas template:

Bubble Pages

    Display (text) - this is the page name
    Roles (List of Roles) - the user roles that are allowed to access this page
    Private? (yes/no) - "yes" means the page is private
      If a user accesses a Page that is marked as Private, they will be redirected to the index page unless they are logged in to a User whose Role has been added to the Roles for this page
The Canvas Base Template comes with a number of pages. The two private pages are the account page, which can be accessed by Standard and App Admin users (but not logged out users), and the admin portal page, which can be accessed by by App Admin users.

Role

    Display (text) - this is the role name
By default, your app comes with two roles: App Admin and Standard.
To add a new role, create a new option in the option set for that role
    New option in Role option set (e.g. Account Admin or Sales)
    Add the new role to the Bubble Pages attribute Roles if they should have permission to access that page.
    Assign the Roles to Users, usually through one of these methods:
      Assign the new Role to users manually in the Bubble Editor's Data tab
      Build the logic to let App Admins sign those Users up from the admin page
      Build the logic to assign the new Role to the Users when they're signed up

⚙️ Admin Options Categories

Manages tabs to display different options in the admin portal

⚙️ Admin Options

List of all the different options we display in the admin portal

⚙️ Navigation Action Type

Contains the different types of actions that can be used for a navigation element in the header or footer

⚙️ Navigation Button Style

Contains the CSS class for different button styles in the header

⚙️ Navigation Element Type

Canvas uses this option set to maintain the default settings for different types of navigation elements in the header and footer

⚙️ Navigation Feather Icon

List of all Feather icons code text. Canvas uses this throughout the template to manage the correct icon to display for links, headers, etc.

⚙️ Password Policy Requirement

This is used to manage the different settings possible for the app's password policy.

⚙️ Yesno (Inclusive "Yes/No")

This is an option set that works similar to the Bubble "yes/no" data type, but adds a 3rd option that returns true for both yes and no. In short, it works as follows:
    no will return results where the field is "no"
    yes will return results where the field is "yes"
    yes OR no will return all results
For a more detailed explanation, read on.
When creating searches in Bubble, if you have a constraint on a yes/no field, it will always return either the "yes" options or the "no" options.

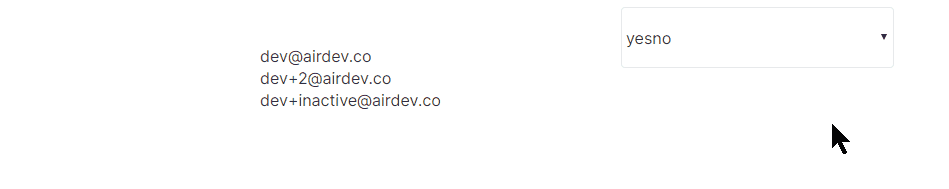

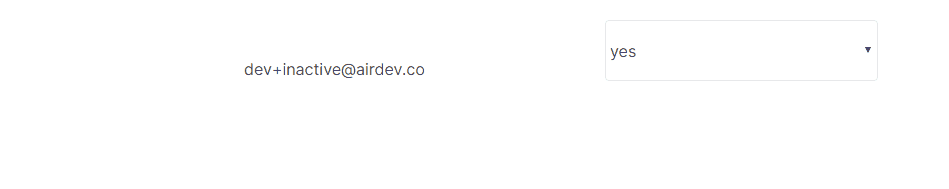

Normal Bubble yes/no
The above image shows how a search either includes Inactive users or Active users, but not both. Here's the search logic used to produce this result:

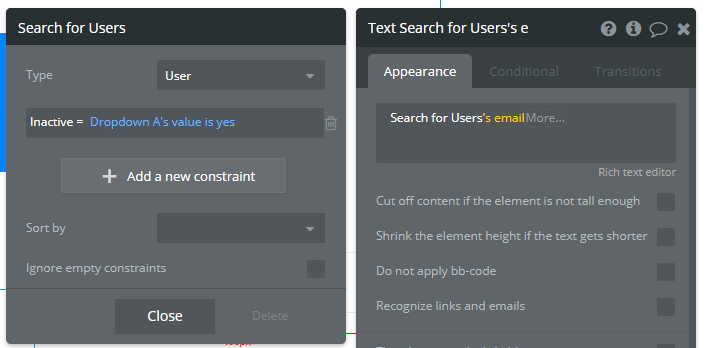

Logic with normal Bubble yes/no (no inclusive yesno option)

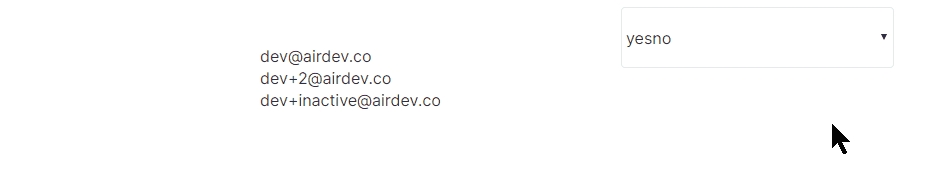

Here's how this will look when set up with the Inclusive / Exclusive option set.

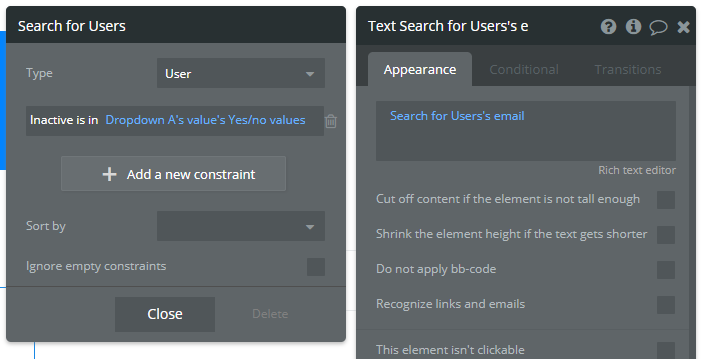

Option set yes/no/yesno
Logic with normal Bubble yes/no (no inclusive yesno option)
For a demonstration of how to use this in a real app, check out the Dropdown Users on the admin page of the Canvas Base Template.
The performance of these searches seemed to be about the same in our tests. Please let us know if you notice anything different.

⚙️ Language

A full list of languages and to manage all localization settings in Canvas and Bubble.

⚙️ Verify type

Manages the type of verification being done when using the widget_verify_phone/email or widget_2fa. Also used with the Verify backend calls to indicate whether a user should receive an sms or email.
