  1. BLOCKS

3-Column Dashboard Widgets

Previous2-Column Dashboard WidgetsNext3-Column Repeating Group (Text, Link, Image, and Description)

Last updated 4 years ago

Was this helpful?

Overview

The block includes three common dashboard widgets for displaying metrics, a chart, and a table of recent activities.

Structure

  • When this block is added to a page, it is placed within a group called Blocks container 860 (do not rename) on the page. This group contains the responsive settings for all blocks.

  • This block contains three groups:

    • Group Inner metric contains a formatted text element for displaying numbers, dollar amounts ($100.3k, $2.5m, and $12.23B), or star ratings

      • Dropdown month is hidden by default. You should use the dropdown if you want to display data from different time periods

      • Text number displays the amount increase or decrease from a defined time period

      • Group Inner star rating is hidden by default and contains a star icon. You should use this when you want to display overall star rating instead of dollar amounts

      • Text rating is hidden by default and displays the star rating increase or decrease from a defined time period

    • Group Inner chart contains a Bubble chart element for displaying graphs

    • Group Inner feed contains a table for displaying recent activities

      • RepeatingGroup Table displays the content (set to Dummy data for now)

  • Button Add is hidden by default. To unhide it, you can remove the hiding rule on Group Inner header button from the Bubble responsive editor.

How to set up the numbers widget

  • Update the data source of Group Inner metrics content_number (type: number).

  • To format the main display text as a number, remove both conditional statements

  • To format the main display text as a dollar amount, remove the first conditional statement for This url is empty

  • To format the display text as a star rating, remove the second conditional statement and modify the first statement to This url is not empty

    • Hide Text number

    • Unhide Text rating and Group Inner star rating

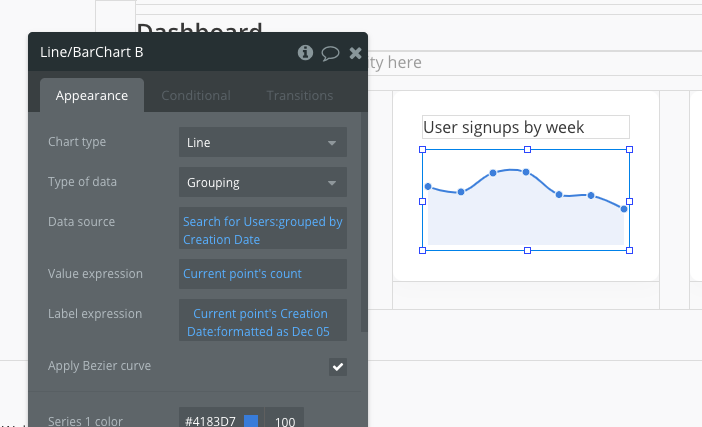

How to set up the chart widget

  • Update the data source of the Bubble chart element

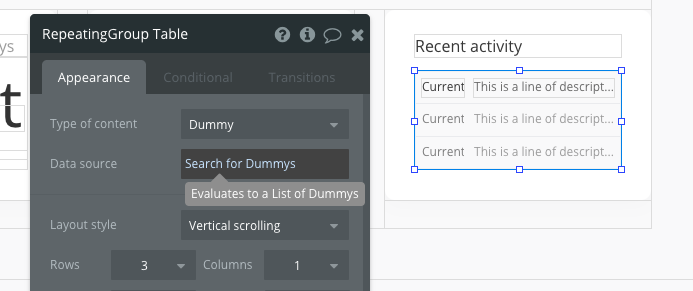

How to set up the table widget

  • Update the data source of RepeatingGroup Table
